Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable

  • 1
  • 2
  • 3

Brand Name : JQ/OEM

Model Number : ADSS-24B1

Certification : ISO9001

Place of Origin : Guangzhou

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Delivery Time : 5-8 work days

Packaging Details : wooden drum

Fiber type : single mode or multi mode

Type : Outdoor Optical Cable Aerial

Fiber count : 2-144 Core

Color : Black,Customized

Length : 2km or customized length

Jacket material : PE

Name : ADSS Optical Fiber Cable

Strength member : FRP

Application : Aerial

Operating temperature : -40 ~ +60 C

Contact Now

Adss Cable Kevlar Yarn 100m Span 24 Core Single Multi Mode Outdoor Fiber Optic Cable

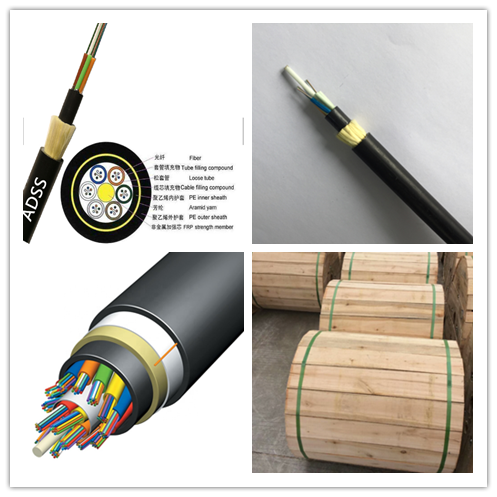

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable

Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable





Features

1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
6.Single Fiber Reinforced Plastic as the central strength member
7.Loose tube filling compound
8.100% cable core filling





Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22



Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable





Technical Data



Span : 100m



under 110kv



24core



structural

parameter



Central strength components : FRP



Diameter : 1.5mm



Loose tube (jelly filled )



Outer diameter :1.8mm



Inner sheath PE



Thickness : 0.9mm



outer sheath PE



Thickness :1.8mm



Technical

parameter



outer diameter of Cable



11mm



cable cross-sectional area



95.03 mm2



Fiber model



G.652D



Weight of cable



95kg/km



Rated tensile strength (RTS)



10 kn



Minmum allowed tension(MAT)



4kn



EDS



3.2kn



Young's modulus



7.8 kn/mm2



Coefficient of thermal expansion



1.810-6/°C



Cruss resistance



Long term :1100 n/100mm



short term:2200 n/100mm



Permission bent radius



Long term (when running) 220 mm



Short term (when laying) 360 mm



Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃





Package Detail



Export Wooden drum,Normal shipping length of the cable will be 1~4km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable

Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable

Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable
