6mm Unit Tube Two FRP Fiber Optic Cable GYFXTY
Product Description
The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system. Two parallel FRP are placed at the two sides.
The cable is completed with a polyethylene (PE) sheath.
Features
Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.
Optical Characteristics
| | | G.652 | G.655 | 50/125μm | 62.5/125μm |
| Attenuation(+20C) | @850nm | | | ≤3.0dB/km | ≤3.0dB/km |
| @1300nm | | | ≤1.0dB/km | ≤1.0dB/km |
| @1310nm | ≤036dB/km | ≤0.40dB/km | | |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | | |
| Bandwidth(ClassA) | @850nm | | | ≤2500MHz-km | ≥2200MHz.km |
| @1300nm | | | ≤1000MHz.km | ≥2600MHz-km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.15NA |
| CableCut-off Wavelength | ≤1260m | ≤1480nm | | |
Technical Data
| Fiber count | Cable diameter(mm) | Nominal weight(KGS) | AllowableTensileLoad(mm) | Allowable Crush Resistance(N/100m) |
| Short term | Long term | Short term | Long term |
| 2-12 | 6.0 | 45 | 800N | 400N | 1000N/100m | 300N/100m |
Package

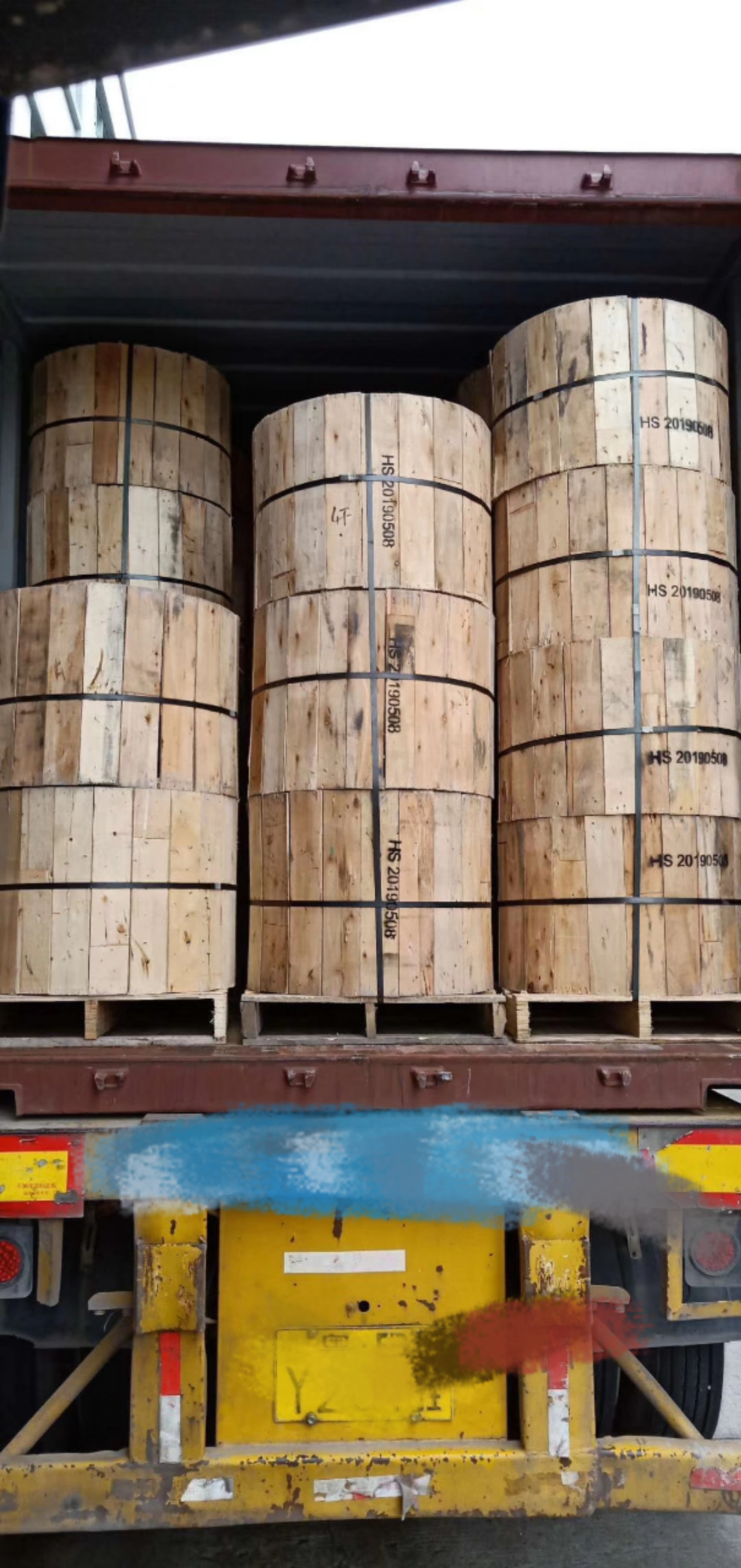

Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;
Shipping way
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Performance
Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
Fiber : Single mode G652D/Mutli mode 50/125 or 62.5/125
Installation : Suitable for aerial or duct
Application : Apply to Long distance communication system, Local area network system and Subscriber
Network system
Lifetime : above 30 years
Operating temperature : -30°C~+70°C
Permisson bent radius Static : 10 times O.D.
Dynamic : 20 times O.D.
