GYXTW G652d Armored Duct 8 Core Aerial Fiber Optic Cable Loose Tube

Name: GYXTW G652d Armored Duct 8 Core Aerial Fiber Optic Cable Loose Tube
Brand: jiqian
Price: 1 USD

Buy cheap GYXTW G652d Armored Duct 8 Core Aerial Fiber Optic Cable Loose Tube product

Brand Name : jiqian

Model Number : GYXTW 2 4 6 8 12 core

Certification : ISO

Place of Origin : CHINA

MOQ : 1000m

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 100km per 2 day

Delivery Time : 2-4day

Packaging Details : wooden drum

Fiber type : G652D

Oem : Available

Application : Aerial/duct

Number of conductors : 2 4 6 8 12 24

Structure : Loose tube

Operating temperature : -40 ~ +60 C

Contact Now

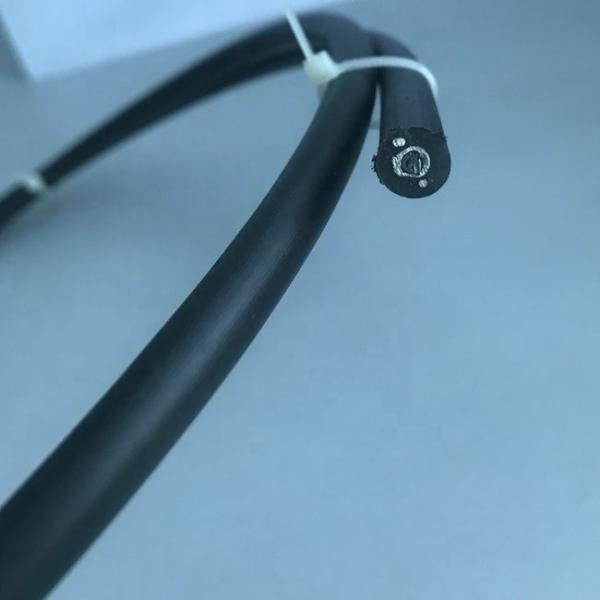

GYXTW single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blockingperformance.

GYXTW G652d Armored Duct 8 Core Aerial Fiber Optic Cable Loose Tube

Technical Parameters:

Part NO:Increased by 2 fiber	Fiber Count	Tubes	Fillers	Cable OD(mm)	Cable Weight(kg/km)	Tensile Strength Long/Shot Term(N)	Crush Resistance Long/Short Term(N)
GYXTM-2~12	2~12	1	0	7.6	87	600/1500	300/1000
GYXTM-14~24	14~24	1	0	8.5	120	600/1500	300/1000
GYXTM-2~12	2~12	1	0	8.8	116	600/1500	300/1000
GYXTM-14~24	14~24	1	0	9.6	134	600/1500	300/1000

Storage/Operating Temperature:-40℃ to +70℃

Bend Radius (Static/Dynamic):10D/20D

Optical Characteristics:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Feature:

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Loose tube filling compound, 100% cable core filling
7. PSP/PAP enhancing moisture-proof
8.Steel wire used as the central strength member

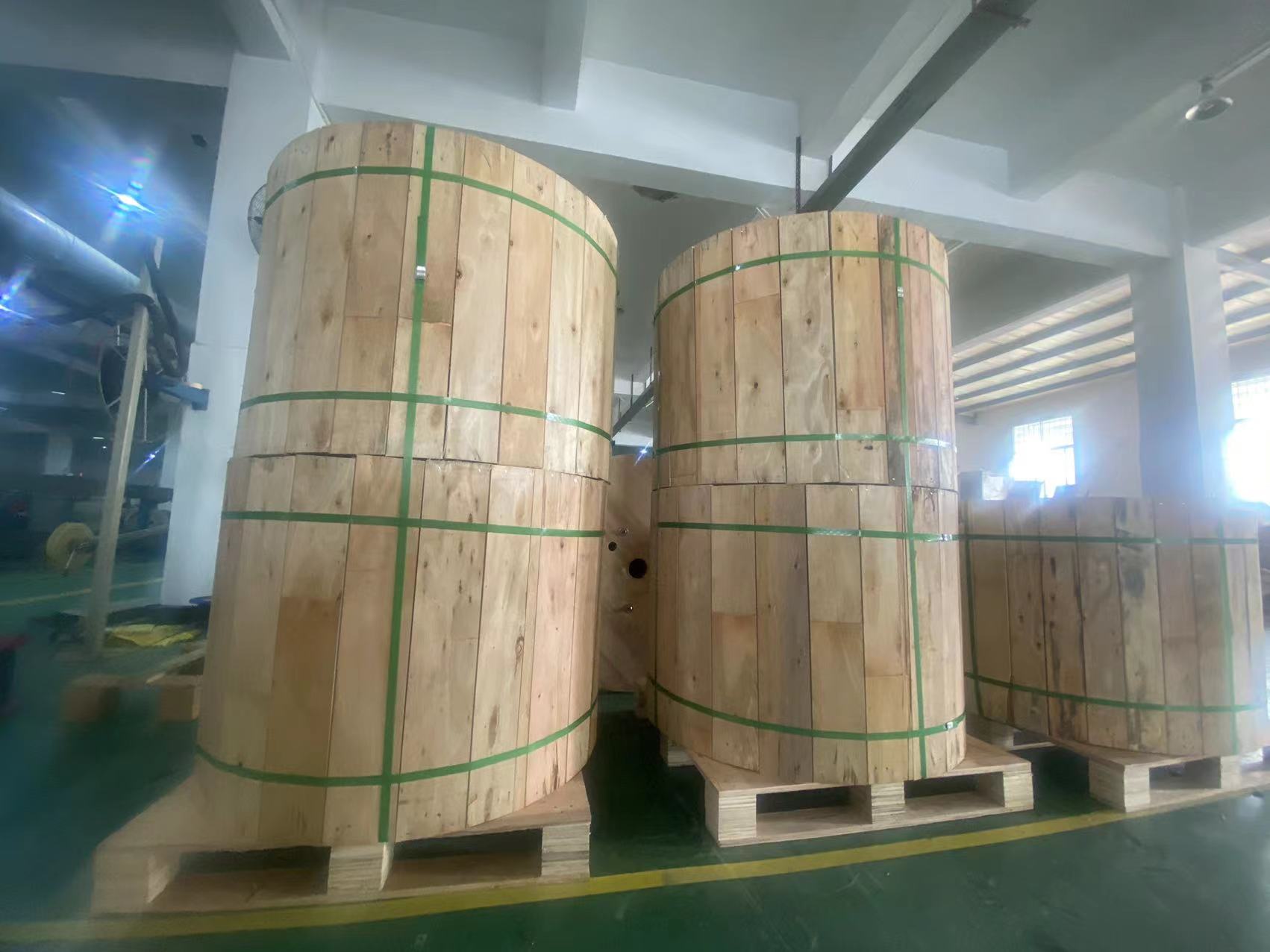

product packing :

1). 4km/reel

2). 5km/reel Color Box and OEM Package available.

20" Container Full Load: 400km.

40" Container Full Load: 800km.

GYXTW G652d Armored Duct 8 Core Aerial Fiber Optic Cable Loose Tube

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
