GYTY53 Double Jacket Armored Anti - Rodent Fiber Optic Cable

  • 1
  • 2
  • 3

Brand Name : JQ/OEM

Model Number : GYFTY53-48 core

Certification : ISO9001

Place of Origin : Guangzhou,China

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30km per day

Delivery Time : 5-8 work days

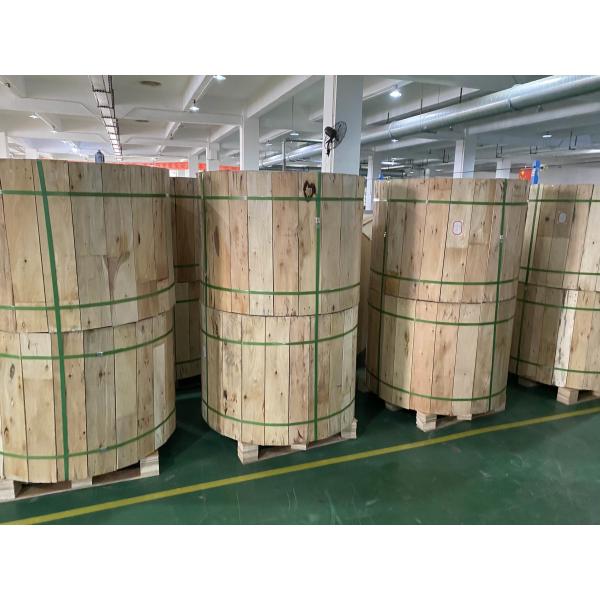

Packaging Details : wooden drum

Fiber count : 4-144 Cores

Fiber type : single mode/multi mode

Jacket : PE

Color : Black

Product name : Outdoor fiber optic cable

Structure : Loose tube

Installation : Aerial or Duct

Strength member : FRP

Oem : Available

Contact Now

GYTY53 Double Jacket Armored Anti-rodent Fiber Optic Cable



The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

GYTY53 Double Jacket Armored Anti - Rodent Fiber Optic Cable


Application

1. Direct burial

2. Underground

3. Backbone Internet



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHzkm



2200MHz:km







@1300nm







21000MHz-km



2600MHzkm



NumericalAperture











0.200+0.015NA



0.275+0.015NA



CableCut-

offWavelengthλcc







≤1260nm















Technical Data



Fiber count



Nominal

Diameter(mm)



Nominal

weight(kg/km)



Max

Fibers per

Tube



No.of

(Tube+fillers)



AllowableTensile Load

(N/100mm)



Allowable Crush

Resistance(N/100mm)



short

Term



long

term



short

Term



long term



2~36



10.2



125



12



6



3000



1000



3000



1000



36~72



15.1



212



12



6



3000



1000



3000



1000



74~96



16.3



246



12



8



3000



1000



3000



1000



    98~120



17.8



288



12



10



3000



1000



3000



1000



   122~144



19.4



336



12



12



3000



1000



3000



1000



>144



Design according to the customer request
