Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength

Product Categories
Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

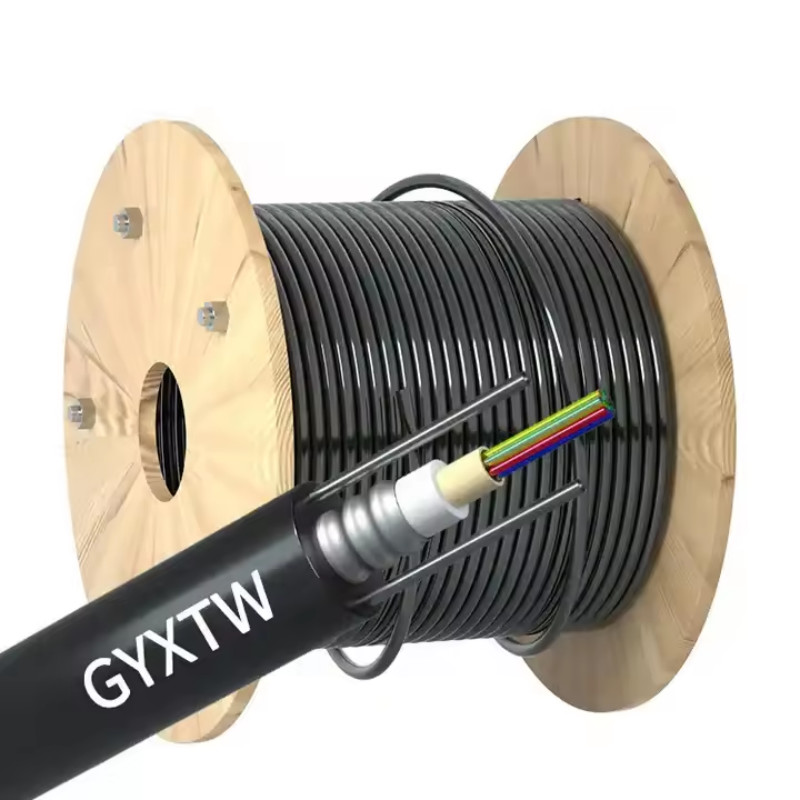

Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength

Brand Name : JQ/OEM

Model Number : GYXTW

Certification : ISO9001

Place of Origin : Guangzhou China

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 Per day

Delivery Time : 3-5dyas

Packaging Details : 1/2/3/4/5 km in one wooden drum

Jacket material : PE

Outer diameter : 6/7/8/9mm

Steel wire : 1.0mm

Color : Black

Fiber count : 4/24/36/48 Core

Structure : Unit tube

Strength member : Two steel wire

Installation : Aerial &Duct

Product name : Outdoor Optic Fiber Cable

Fiber type : YOFC or as request

Oem : Available

Contact Now

 Central loose tube type optical cable GYXTW





Product description



Single mode G652D  Fiber Optic Cable GYXTW

Fiber Numbers

4-24-36-48 fibers
Metal reinforcing members

Parallel steel wire

Cable OD

8.0mm
Application

Overhead laying

Structural features

Center tube
Unit loose tube cables

Recommended index

 12 cores



Cable Structure

Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength



Cable Section

Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength

Cable Diameter

 Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength



Fiber Parameter

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22







Cable Performance




Fiber Type
G.652
G.655
50/125um
62.5/125um


Attenuation (+20°C)
850 nm
-
-
≤3.0 dB/km
≤3.3 dB/km
1300nm
-
-
≤1.0 dB/km
≤1.0 dB/km
1310nm
≤0.36 dB/km
≤0.40 dB/km
-
-
1550nm
≤0.22 dB/km
≤0.23 dB/km
-
-
Bandwidth
850nm
-
-
≥500 MHz·km
≥200 MHz·km
850nm
-
-
≥500 MHz·km
≥500 MHz·km
Numerical Aperture
-
-
0.200±0.015 NA
0.275+0.015 NA
Cable Cut-off Wavelength 入cc
≤1260nm
≤1450nm
-
-




Technical Parameters

Fiber
Count		 Cable
Diameter(mm)		 Cable Weight
kg/km)		 Tensile Strength
Long/Short
Term (N)		 Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)
2~12 8  78 1000/3000 1000/3000 10D/20D
14~24 10  90 1000/3000 1000/3000 10D/20D









Application: Suitable for Duct / Aerial



Storage / Operating Temperature: -40℃~+70℃









Packing detail: 1/2/3/4/5 km in one wooden drum



Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength
